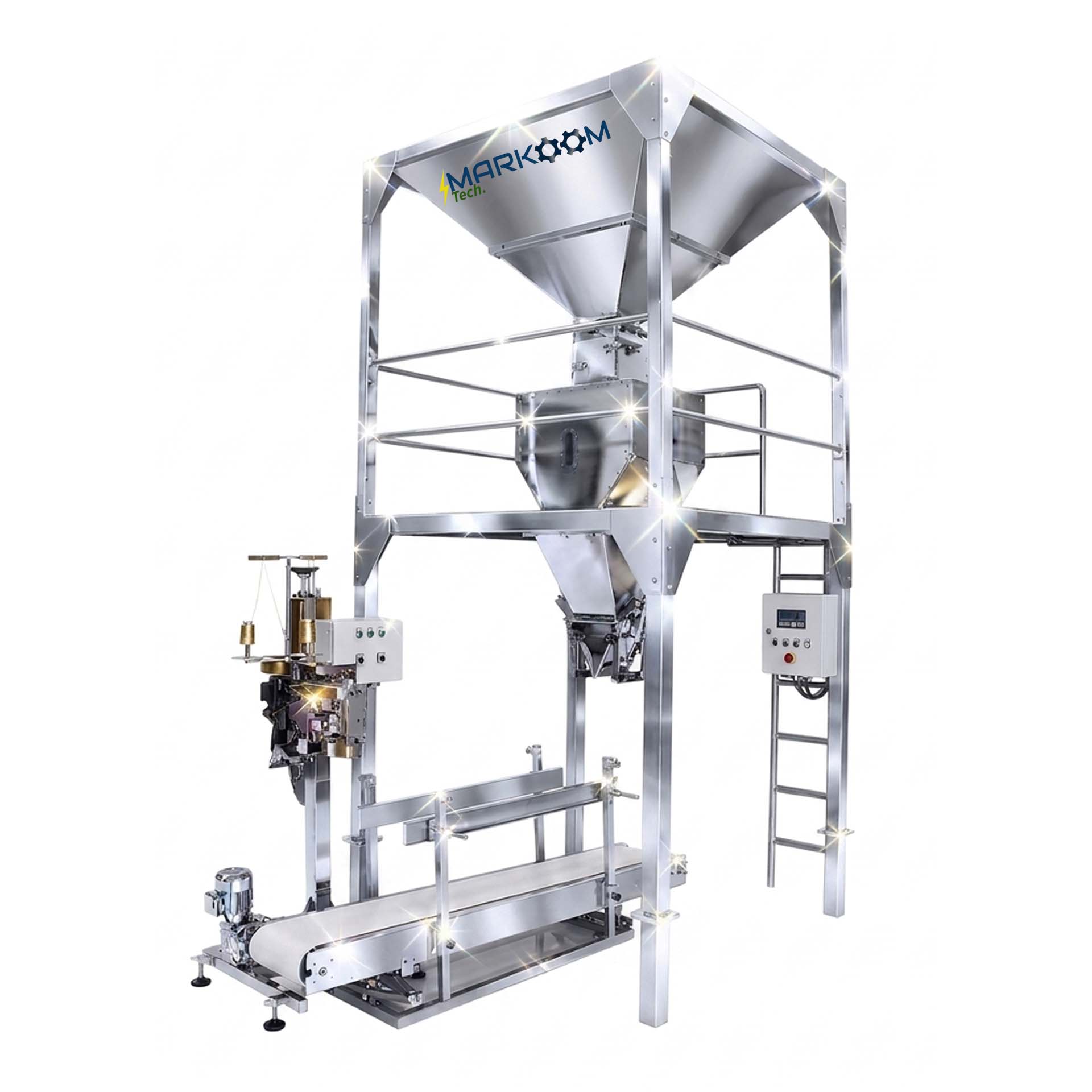

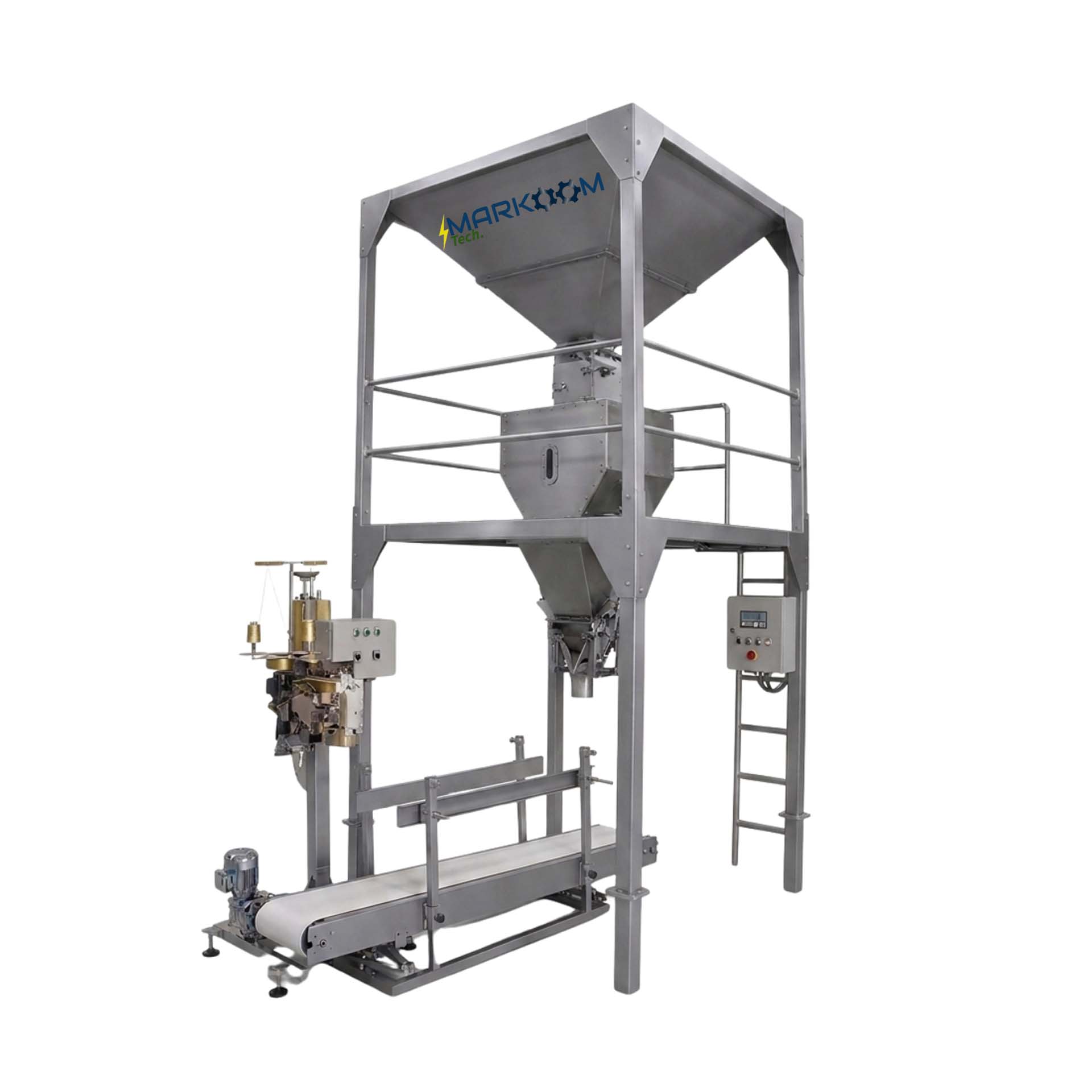

Automatic Weighing Machine – Single Scale (MTSSM-50)
MarkoomTech’s Single Scale Net Weigher & Bagger (MTSSM-50) is a high-precision, automatic system designed for efficient weighing and bagging of bulk materials from 5 to 50 kg. It delivers accurate, consistent performance while improving efficiency in modern processing operations.
The system operates on a net weighing principle, where materials are first weighed in a dedicated hopper before discharge into bags. This method significantly improves weight precision and reduces product giveaway compared to conventional gross weighing systems.
Equipped with dual-stage feeding (coarse and fine dosing), the machine allows precise control over filling speed and accuracy. Its smart control panel enables easy parameter adjustment, ensuring seamless integration into fully or semi-automated production lines.
Manufactured from robust, food-grade stainless steel, the MTSSM-50 guarantees hygienic operation, corrosion resistance, and long service life with minimal maintenance requirements.
Features:
- Durable body constructed from St 37 steel
- Weighing accuracy: ±50 g per sack
- Pneumatic sack clamping on the lower hopper
- PLC-controlled for automated operation
- Faults displayed clearly on the control panel
- Weighbridge capacity: up to 6 sacks per minute (in pairs)
- Reciprocating product cutter on upper body after sensitive weighing
- Pneumatic caps to hold and unload product into the pan
- Belt-driven power transmission via reducer and pulley assembly
Components:
- Pre-storage hopper for consistent product supply
- Feeding unit optimized for smooth product flow
- Scale model for precise and accurate weighing
- Bag grip model compatible with various bag types
- Automatic sewing machine for secure bag sealing
- Bag conveyor belt for efficient bag movement
- Control panel & PLC for automated and user-friendly operation
These components ensure a flexible, high-precision, and fully integrated bagging solution.
