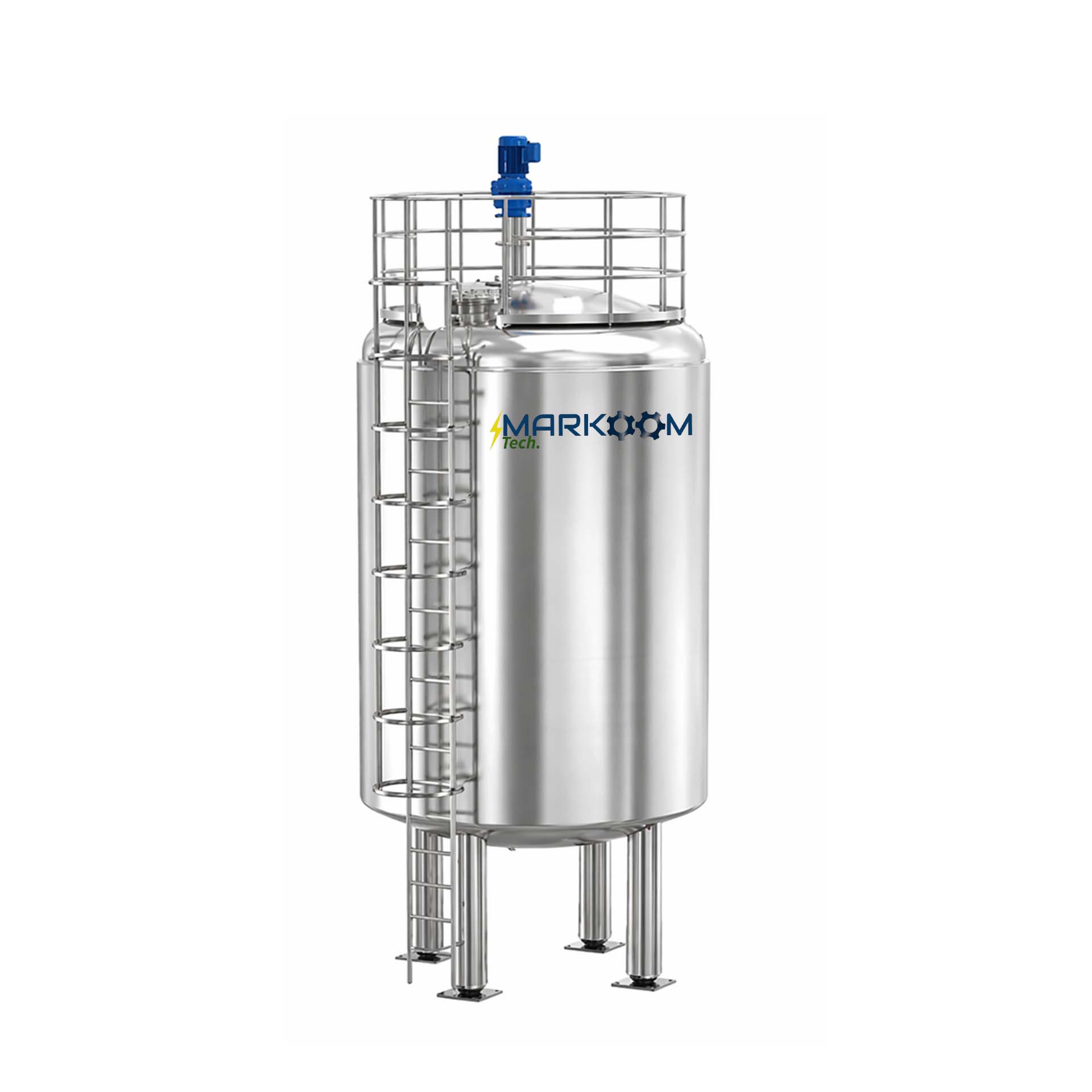

Stainless Steel Tank with Mixer – MTTM
MarkoomTech Stainless Steel Tank is a reliable solution for industries like dairy, beverages, chemicals, cosmetics, and distilleries. Designed for sanitary mixing and blending, it ensures consistent product quality. Its durable stainless steel construction guarantees long-lasting performance, easy cleaning, and contamination-free operation. Perfect for industrial food and beverage production and chemical processing, this tank enhances workflow efficiency and delivers uniform results with every batch.
Stainless Steel Mixing Tanks – Technical Product Overview:
MarkoomTech Stainless Steel Mixing Tanks are industrial-grade processing vessels engineered for high-efficiency mixing, blending, homogenization, and dissolution applications across multiple industries. Designed for demanding production environments, these tanks provide superior mechanical strength, hygienic operation, and long-term process reliability.
The tanks are fabricated from food-grade stainless steel (AISI 304) with a structural wall thickness of 3–4 mm, ensuring excellent corrosion resistance, high durability, and resistance to mechanical stress under continuous industrial operation. Optional material upgrades such as AISI 316 stainless steel can be supplied for aggressive chemical or high-corrosion applications.
Both the internal and external surfaces are manufactured with a sanitary finish to meet strict hygiene requirements. The internal product-contact surfaces are polished to minimize product adhesion, contamination risk, and bacterial growth, while the sidewalls are finished to dairy-grade polishing standards, ensuring easy cleaning and simplified maintenance during CIP or manual sanitation procedures.
Each mixing tank is engineered with approximately 25% free headspace above the nominal working volume, allowing improved vortex formation, efficient product circulation, foam control, and reduced overflow risk during high-speed agitation. This design significantly enhances overall mixing efficiency and process stability.
The tanks are suitable for integration with various agitator systems, including paddle mixers, high-shear mixers, anchor agitators, and homogenizers, depending on product viscosity and process requirements. Ideal applications include solid dissolution, liquid-liquid blending, slurry preparation, emulsification, and ingredient dispersion within the food & beverage, pharmaceutical, cosmetic, and chemical industries.
Backed by a two-year warranty, MarkoomTech mixing tanks deliver reliable, hygienic, and high-performance industrial processing solutions.
Main Components – Stainless Steel Mixing Tanks:
- Tank Body: Heavy-duty AISI 304 stainless steel vessel with 3–4 mm wall thickness for structural strength and corrosion resistance
- Mixing System / Agitator: Industrial mixing shaft and impeller assembly designed for efficient blending, homogenization, and product circulation
- Drive Unit: High-performance electric motor with gearbox providing stable torque and controlled mixing speed
- Top Cover / Lid: Hygienic stainless steel cover for product protection, inspection, and contamination prevention
- Inlet & Outlet Connections: Sanitary feeding, discharge, and transfer ports for controlled product flow
- Support Structure: Reinforced stainless steel legs or support frame for stable installation and load distribution
- Control Panel: External electrical control unit for motor operation, speed control, and safety monitoring
- Drainage System: Bottom discharge valve/outlet for complete tank emptying and easy cleaning
- Surface Finish: Internal and external sanitary polished surfaces with dairy-grade finishing for hygienic processing
- Safety & Electrical System: Integrated overload protection, wiring, and emergency safety controls for reliable industrial operation
Features:
- Material: AISI 304 standard; AISI 304 available on request
- Capacity: 100 L – 20,000 L
- Applications: Widely used in food, beverage, dairy, and pharmaceutical industries
- Construction: Single layer, double layer (for heating/cooling), or triple layer (insulated)
- Finish: Mirror or matt polished inside and outside
- Legs/Support: Standard three feet; custom configurations available per customer requirements
Applications – Stainless Steel Mixing Tanks:
MarkoomTech Stainless Steel Mixing Tanks are widely used in industries where hygienic processing, corrosion resistance, and precise mixing performance are essential for product quality and process stability.
Common applications include:
- Food and Beverage Industry – Mixing, blending, ingredient dissolution, sauce preparation, syrup processing, and liquid product storage
- Dairy Industry – Processing of milk, yogurt, cream, cheese mixtures, and other dairy products requiring sanitary handling
- Pharmaceutical Industry – Preparation of liquid formulations, suspensions, syrups, and chemical compounds under strict hygienic conditions
- Cosmetic and Personal Care Industry – Mixing of creams, lotions, gels, shampoos, and emulsified products with consistent texture control
- Chemical Industry – Processing of liquids, additives, solvents, detergents, and industrial chemical compounds requiring corrosion-resistant equipment
These tanks are ideal for applications involving mixing, homogenization, emulsification, dissolution, storage, and controlled product transfer in continuous industrial production environments.
Key Advantages – Stainless Steel Mixing Tanks:
- Hygienic and corrosion-resistant stainless steel construction (AISI 304 / AISI 316) for long-term industrial durability
- Customizable tank capacities and surface finishes to meet specific processing requirements
- Optional heating, cooling, and insulation systems with single, double, or triple-layer configurations
- High-efficiency mixing systems with impellers and industrial drive motors for consistent and uniform processing
- Excellent process flexibility for mixing, blending, homogenization, and storage applications
- Easy cleaning and maintenance with sanitary polished surfaces suitable for strict hygiene standards
