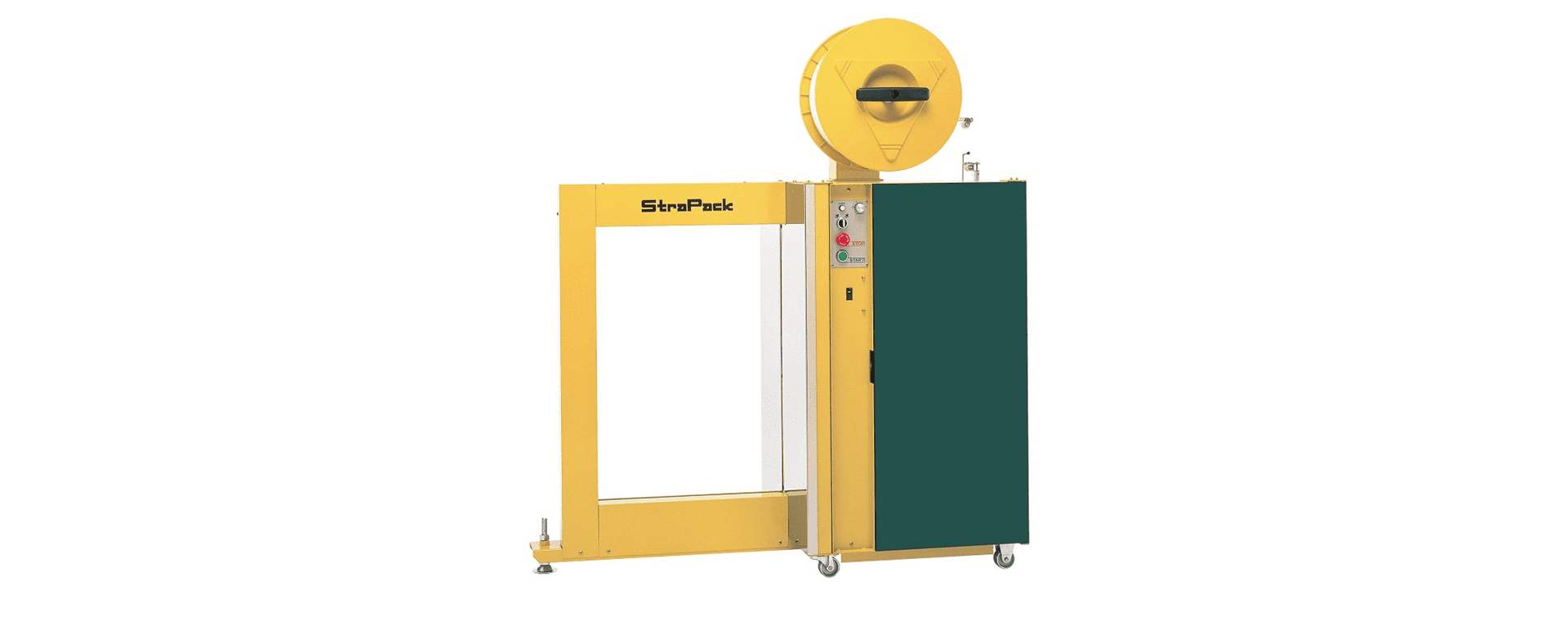

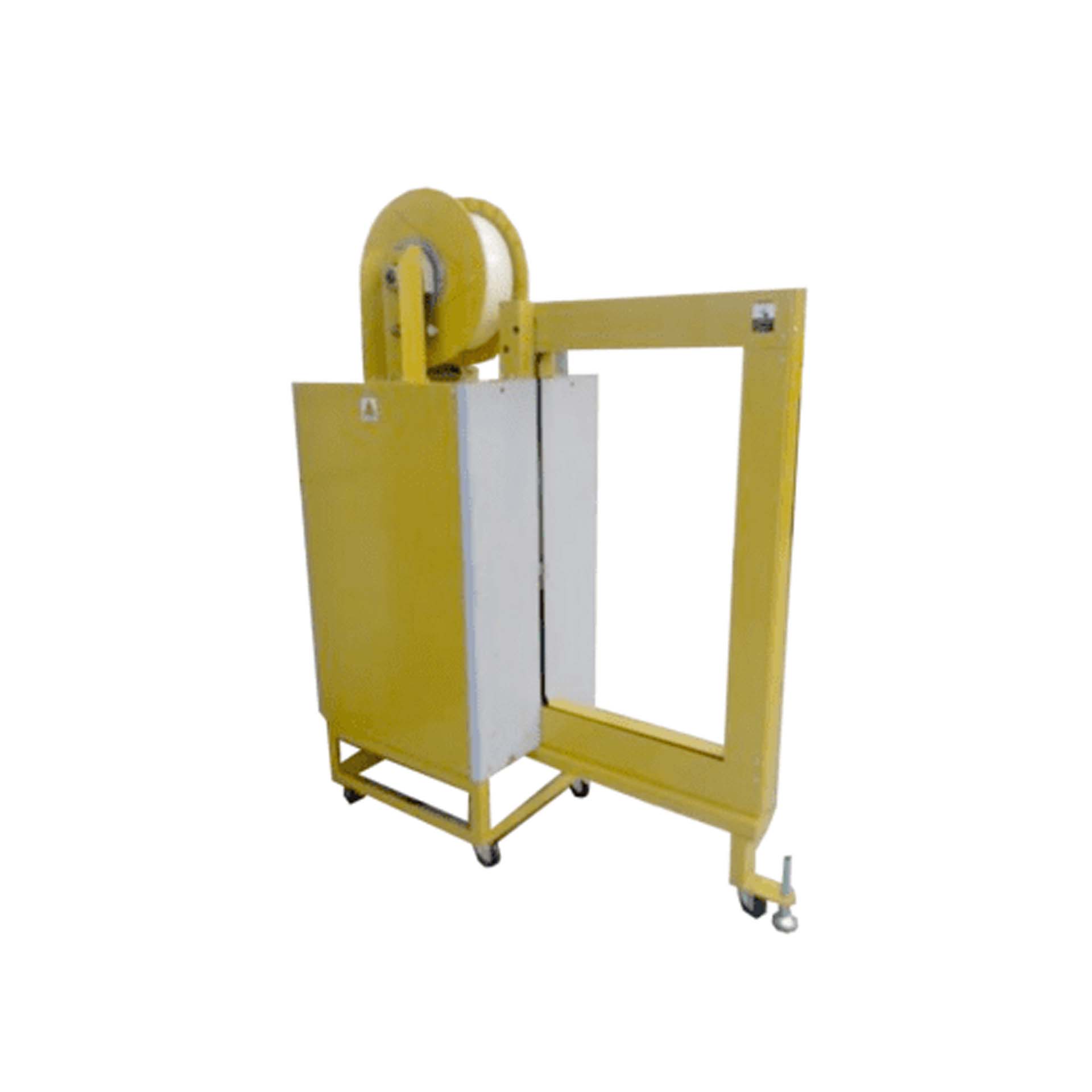

Hay Strapping Machine – MTHSM
MarkoomTech supplies the MTHSM Hay Strapping Machine from a well-known, professional strapping machine manufacturer. Designed specifically for the harsh environment of the hay baling industry, this machine delivers a very reliable and fast strapping solution for packing bales after the baler machine.
Product Description:
The MTHSM features a side-seal design and adapts easily to conveyorized automated packaging systems. Its compact arch design requires only a 76 mm (3-inch) gap in the conveyor.
When service is required, the machine can be easily slid out of the conveyor system. The strap rails are designed with a special cover to prevent hay from entering the rail, which could cause blockages and errors.
An end-of-cycle interlock signals the conveyor system to restart. Out-of-strap or cycle error warnings alert the operator that the strapping machine requires attention.
Specifications:
| Parameter | Details |
|---|---|
| Width | 1500 mm |
| Depth | 610 mm |
| Height | 1722 mm |
| Weight | 200 kg |
| Table Height | (adjustable) |
| Strap Material | Polypropylene (PP) |
| Strap Coil Dimensions | ID 200 mm x OD 450 mm x W 200 mm |
| Strap Width | 5, 6, 9, 12 mm |
| Strap Tension | Up to 450 N with 150 mm stroke |
| Power Supply | 100–240 V, Single phase, 50/60 Hz, 0.74 kVA |
Key Features:
-
Side-seal design – ideal for dusty and dirty environments
-
Compact arch – needs only 76 mm (3″) conveyor gap
-
Easy maintenance – slides out of conveyor system for servicing
-
Protective rail covers – prevent hay ingress and blockages
-
End-of-cycle interlock – automatic conveyor restart signal
-
Error warnings – out-of-strap and cycle error alerts
-
Heavy-duty performance – product weight stays on conveyor, not on machine
Applications:
-
Hay baling industry – harsh environments
-
Heavy products – weight supported by conveyor
-
Dusty and dirty conditions – side-mounted head excels
The MTHSM Hay Strapping Machine by MarkoomTech is a fast, reliable, and heavy-duty strapping solution engineered for the demanding hay baling industry. With its side-seal design, easy maintenance access, and robust protection against dust and debris, it ensures continuous operation and high productivity.
MarkoomTech – Supplying professional strapping solutions you can trust.
