Vibro Screen Cleaner – MTVSC- 300
MarkoomTech Vibro Screen Cleaner is designed for the efficient cleaning of grains, seeds, and granular products, ensuring high-quality processing by removing stanger impurities.
Product Overview Vibro Screen Cleaner – MTVSC- 300

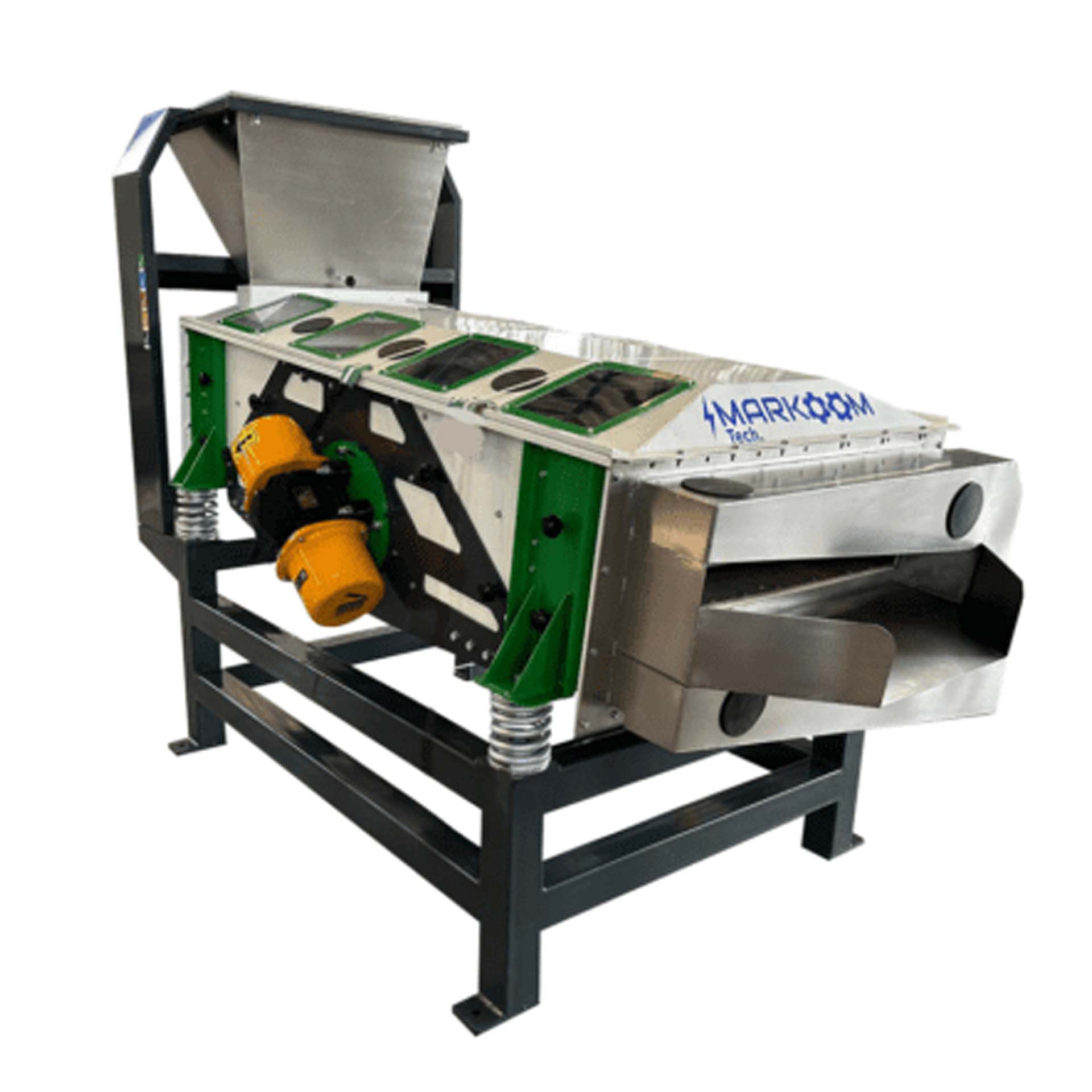

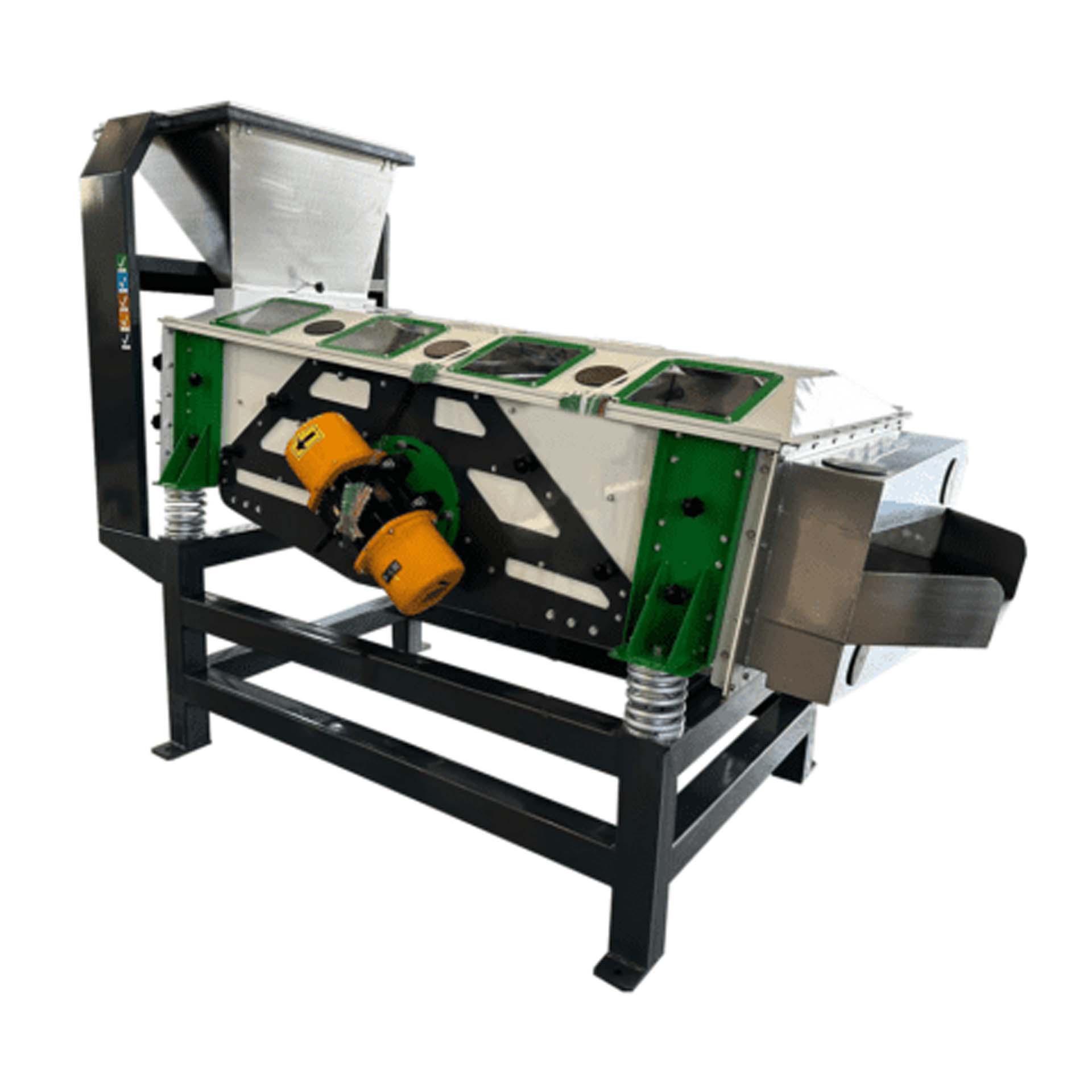

Vibro Screen Cleaner features a dual-screen system, where the top screen removes oversized impurities and the bottom screen separates fine particles for precise material classification. Equipped with two vibro motors, the machine generates controlled vibrations that enable effective screening, filtering, and grading of raw seeds. The screen box is mounted on a robust frame with damping springs, reducing excess vibration and ensuring smooth and stable operation.
Unlike conventional cleaning screens, the MTVSC-300 is designed with a minimal-welding structure, improving durability and simplifying maintenance. Its fully enclosed body with monitoring windows allows operators to observe product flow while maintaining a clean, dust-free environment, making it ideal for modern grain and seed processing facilities.
Key Features – Vibro Screen Cleaner – MTVSC 300
- Dual-screen system for precise cleaning and material classification
- Upper screen removes oversized impurities and foreign materials
- Lower screen separates fine particles and dust efficiently
- Dual vibro motors provide stable and controlled vibration performance
- High screening efficiency with continuous product flow
- Heavy-duty frame with damping springs for reduced vibration and smooth operation
- Fully enclosed structure minimizes dust emission during processing
- Inspection windows for easy monitoring of product movement
- Minimal-welding design for improved durability and simplified maintenance
- Suitable for sesame seeds, grains, and various agricultural products
- Hygienic and robust construction for industrial processing environments
- Easy screen replacement and low maintenance requirements
- Compatible with automated sesame processing and cleaning lines
Usage and Working Principle – Vibro Screen Cleaner – MTVSC 300
Vibro Screen Cleaner – MTVSC 300 is installed after the MTSAS 900 Rotary Air Separator or the MTHAS 750 Horizontal Air Separator in sesame and tahini processing lines. It removes fine sesame husks and light impurities that remain after air separation.
Together with sesame husk separators, the MTVSC 300 provides one of the most reliable cleaning systems for complete husk removal. It ensures high-quality hulled sesame suitable for premium food applications.
This machine works by separating materials according to size. Large impurities remain on the upper screen and are discharged separately. Fine particles and dust pass through the lower screen openings. Clean hulled sesame moves forward for further processing.
Rubber cleaning balls are installed beneath the screens. They continuously clean the screen holes during operation and prevent blockage. This ensures stable, continuous, and efficient operation in automated sesame processing lines.
Operational Manner – Vibro Screen Cleaner – MTVSC 300
Hulled sesame is first pre-cleaned using the MTSAS 900 Rotary Air Separator or the MTHAS 750 Horizontal Air Separator, where up to 70% of the sesame husks are removed. The remaining husks are then separated by the Vibro Screen Cleaner – MTVSC 300 during the final cleaning stage.
The product is transferred by an air blower into the upper cyclone hopper located above the Vibro Screen Cleaner. From there, the sesame flows evenly onto the vibrating screens.
The vibrating sieve system provides precise seed cleaning and grading. It efficiently removes oversized impurities, undersized particles, and the remaining sesame husks. This process ensures complete husk removal and produces clean, high-quality hulled sesame for further processing.
Processing Key Features – Vibro Screen Cleaner – MTVSC 300
- Final-stage cleaning system for complete sesame husk removal
- Removes remaining husks after air separation process
- Efficient separation of oversized and undersized impurities
- Continuous and stable product flow during operation
- High screening accuracy for improved sesame purity
- Gentle handling process that protects sesame seed integrity
- Suitable for sesame, grains, pulses, and spice processing
Highlight features – Vibro Screen Cleaner – MTVSC 300
1- Cleaning and maintenance:
The sieves can be accessed from the back of the machine and easily removed through maintenance flaps for quick servicing. A cover deck allows fast and convenient cleaning of the screening area. The machine is designed with minimal welding and screw connections, reducing breakage and simplifying maintenance and part replacement.
2. Designed for food safety and clean processing:
The screening machine features an enclosed structure that maintains product cleanliness while reducing dust in the processing plant.
3- Reduced Wear and Long Service Life:
The sieves are mounted on durable metal frames and supported by four industrial absorber springs, ensuring smooth and stable operation. This design protects critical components, reduces noise levels, and minimizes wear. The machine is robustly built for long-term performance and reliability in industrial processing environments.
4- Optimized for Hull Separation:
For efficient hull separation, this design provides excellent removal of husks from oilseeds, ensuring high cleaning efficiency and superior product purity in seed cleaning and processing facilities.
