Tahini Grinding Machine – Five Heads Model – MTTG – 005
MarkoomTech Automatic Sesame Grinding Machine is a cutting-edge solution for sesame seed grinding and tahini production. It is designed for industrial efficiency. The machine combines traditional stone milling with modern automation. This ensures consistent, high-quality tahini with a smooth texture and rich flavor. It is ideal for modern tahini factories. The system supports continuous production and high capacity. It also delivers stable operation and uniform product quality.
Tahini Grinding Machine – Five Heads Model (MTTG-005) is a high-performance solution for sesame milling and tahini production.
Product Overview:

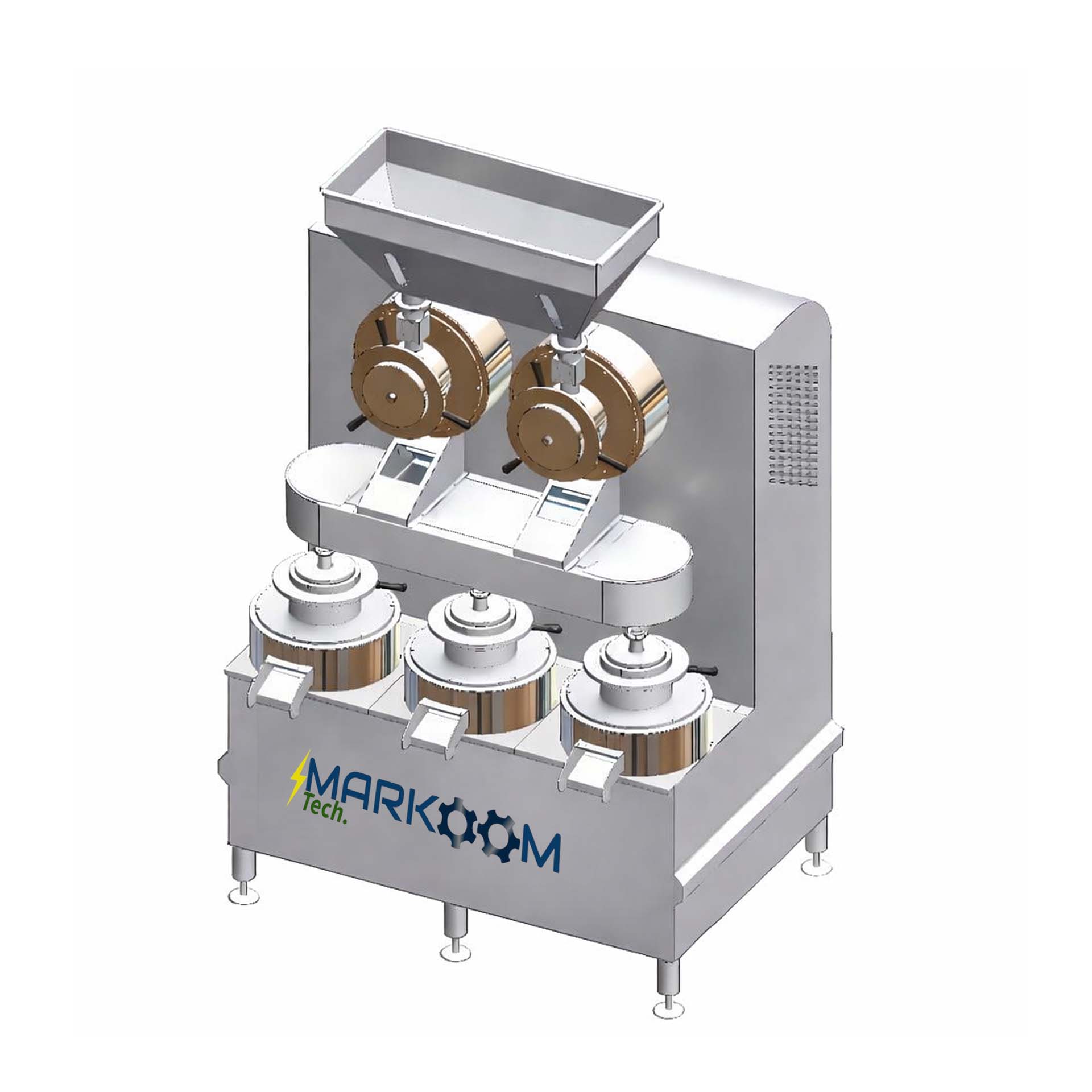

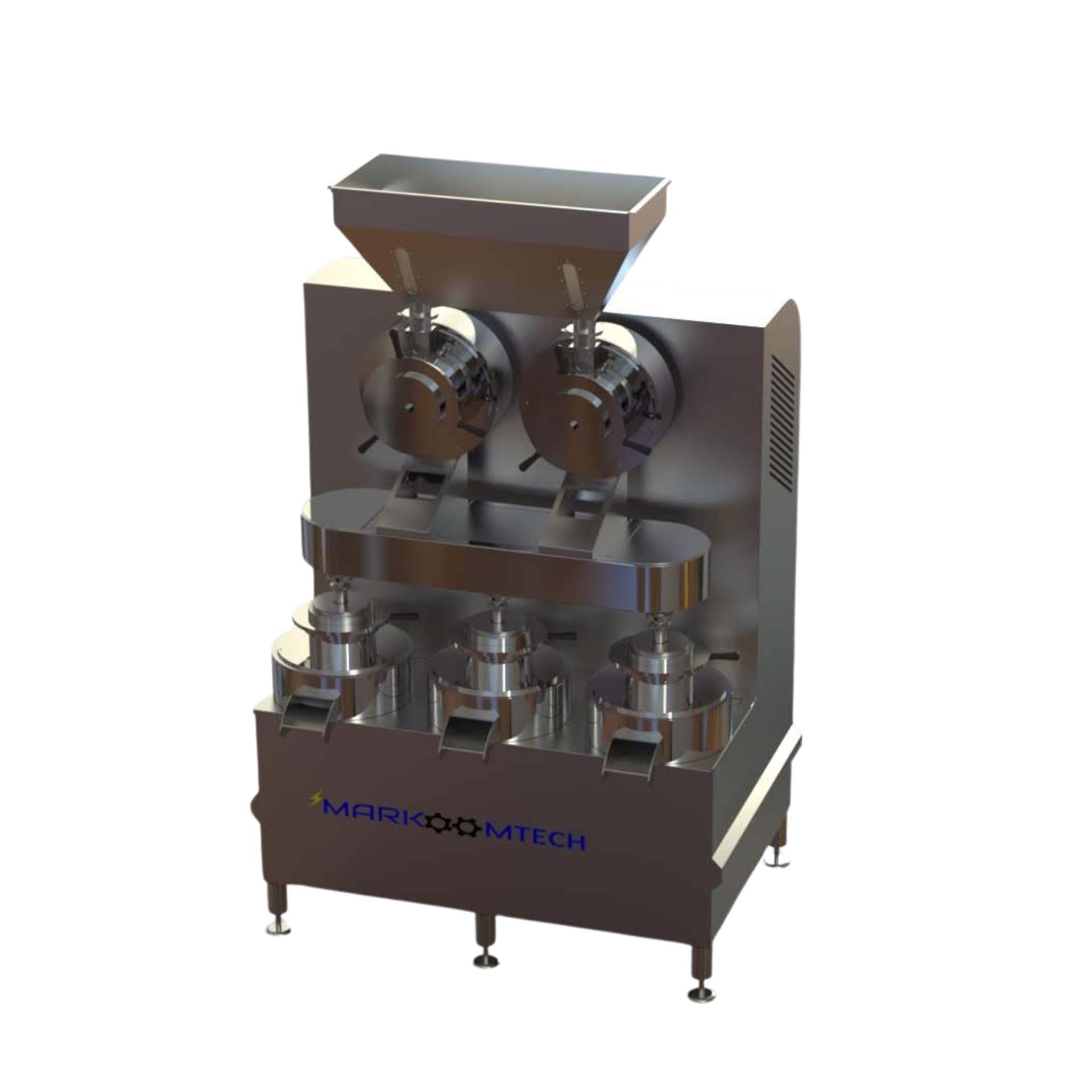

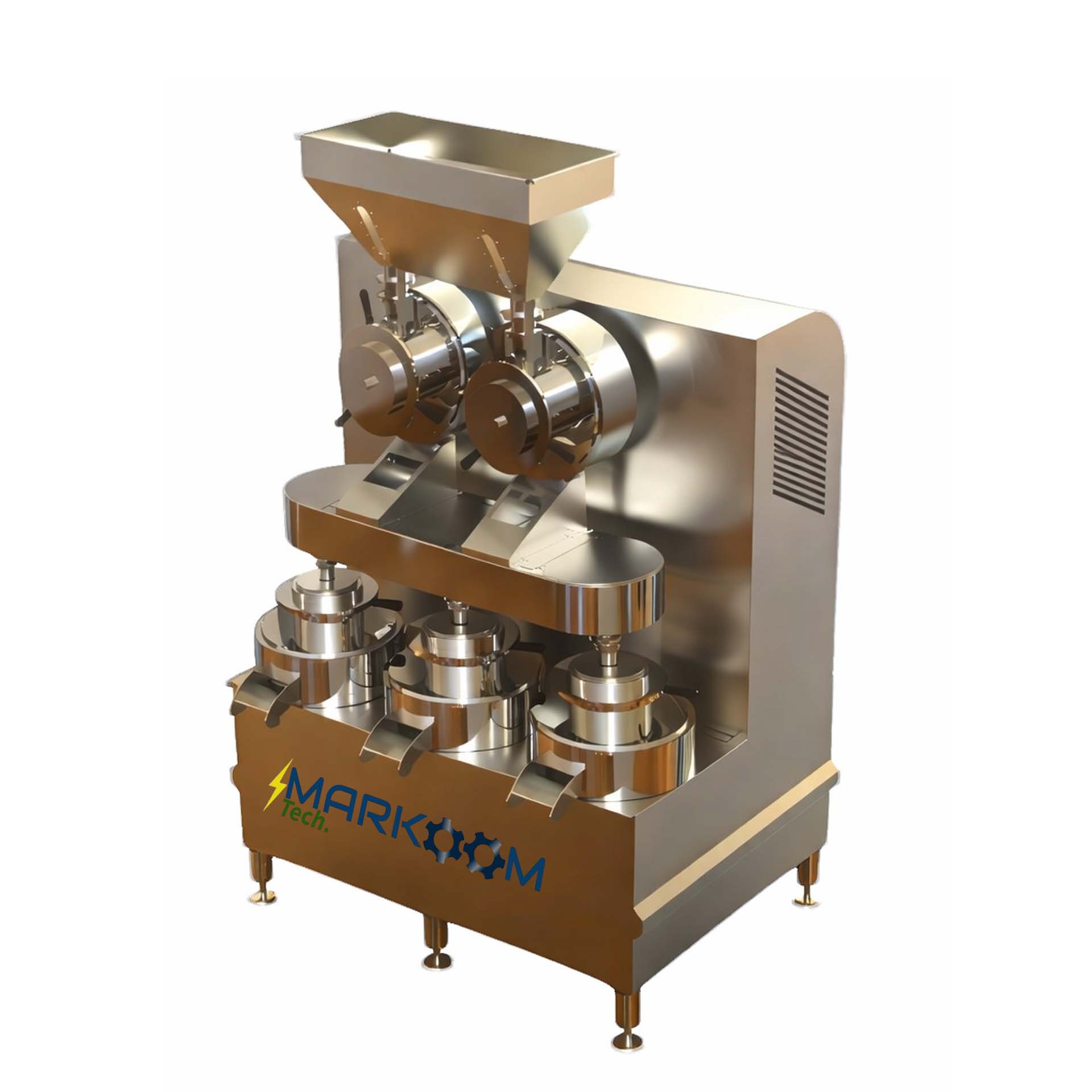

The MarkoomTech Tahini Grinding Machine – Five Heads Model (MTTG-005) is a continuous-duty industrial grinding system designed for high-capacity tahini production lines. It features a five-head grinding assembly enabling multi-stage grinding process.
Each grinding head is equipped with two high-density corundum stones (rotor & stator), totaling 10 grinding stones. These provide high wear resistance, stable grinding performance, and precise abrasive action, ensuring consistent product quality and reduced maintenance requirements under continuous operation.
The system consists of five independent grinding chambers arranged in a two-stage grinding configuration. In the primary stage, roasted sesame seeds are fed into the upper chambers for coarse grinding, forming a semi-fluid paste structure. The material is then transferred to the lower chambers for secondary fine grinding, achieving the final texture.
This multi-stage grinding architecture delivers higher throughput capacity, improved processing efficiency, and ensures uniform, premium-grade tahini output suitable for industrial-scale production.
Main Components – MTTG-005 Grinding System:
- Pre-Feeding Hopper
Stainless-steel intake unit ensuring controlled, continuous material flow into the system, preventing blockages and overload. - Upper Grinding Head (Primary Grinding Unit – Two Heads)
First-stage rotor–stator corundum system performing coarse grinding and forming initial tahini paste. - Lower Grinding Heads (Refining Unit – Three Heads)
Secondary stage of three independent units for fine grinding, achieving uniform texture and optimized particle size. - Corundum Grinding Stones (Rotor & Stator)
High-density abrasive elements providing durability, thermal stability, and consistent grinding performance. - Independent Drive Motors (5 Units)
Dedicated motors for each head ensuring stable torque, independent operation, and precise process control. - Double-Jacket Cooling System
Integrated cooling channels maintaining stable operating temperature and preventing product overheating. - Grinding Gap Adjustment System
Precision mechanism for controlling rotor–stator clearance, enabling accurate fineness adjustment. - Main Frame Structure
Heavy-duty steel construction designed for vibration reduction, rigidity, and long-term industrial stability. - Control Panel (Electrical System)
PLC-based system for process control, safety monitoring, and centralized machine operation.
Operational Manner and Processing:
The process starts with continuous feeding of roasted sesame into the Upper Grinding Head, where primary size reduction is achieved via corundum stone milling. This stage forms a coarse tahini paste.
The coarse tahini paste is then conveyed to the third, fourth, and fifth grinding heads, where simultaneous fine grinding takes place. This stage ensures further homogeneous ultra-smooth texture, while maintaining high throughput capacity.
An integrated double-jacket cooling system controls temperature across all stages, preventing overheating and preserving flavor profile, rheological stability, and nutritional quality.
The final product is continuously discharged through the outlet in a stable and uninterrupted flow, supporting downstream processing or packaging.
A PLC-based control system enables precise adjustment of key parameters such as grinding pressure, motor load, and process stability, ensuring consistent and repeatable production performance.
Advanced Five-Head Grinding System
This sesame grinding machine features a powerful five-head grinding system, specifically engineered for optimal performance in tahini manufacturing.
- Equipped with 10 corundum grinding stones (2 stones per head)
- Dual-stage grinding process for maximum efficiency
- 2 heads for coarse grinding to break sesame seeds
- 3 heads for fine grinding to achieve ultra-smooth tahini
This multi-stage design increases production capacity while ensuring a homogeneous and premium-quality tahini paste.
Distinguished Features:
- High-capacity industrial design optimized for large-scale tahini production and continuous-duty operation.
- Two-stage grinding architecture ensuring controlled particle size reduction and ultra-fine product texture.
- Three secondary grinding heads improving throughput capacity, process stability, and overall efficiency.
- Adjustable corundum stone system enabling precise control of grinding fineness and product consistency.
- Integrated cooling system providing effective thermal management, preventing overheating, and protecting product quality.
- Stainless-steel construction ensuring high hygiene standards, corrosion resistance, and long service life.
- Heavy-duty mechanical design engineered for continuous operation with minimal maintenance demand.
- PLC-based control panel offering intuitive operation, precise parameter adjustment, and real-time process monitoring.
MarkoomTech Range of Sesame Grinding Machines:
- Tahini Grinding Machine – One Head Model – MTTG – 001
- Tahini Grinding Machine – Two Heads Model – MTTG – 002
- Tahini Grinding Machine – Three Heads Model – MTTG – 003
- Tahini Grinding Machine – Five Heads Model – MTTG – 005
- Colloid Mill Machine – MTCMM
The MarkoomTech tahini grinding machine series provides a scalable and flexible solution for all production capacities. Each model is engineered to meet specific output requirements while maintaining stable grinding performance and precise texture control.
Across the entire range, the machines deliver consistent product quality, efficient operation, and reliable production output. All units feature stainless-steel construction and integrated cooling systems for hygienic and stable processing.
The series is designed with energy-efficient operation, ensuring smooth performance and high-quality tahini production across small, medium, and industrial-scale applications.
Key Benefits:
- High-capacity tahini production machine
- Advanced stone grinding technology
- Continuous and automated operation
- Superior tahini texture and consistency
- Durable and hygienic construction
- Energy-efficient and reliable performance
Applications:
- Tahini production factories
- Sesame processing plants
- Halva and confectionery industries
- Food processing facilities
Why Choose MarkoomTech?
MarkoomTech is a global manufacturer of advanced sesame processing technologies, delivering high-performance industrial systems focused on efficiency, hygiene, and long-term reliability.
We provide:
- Advanced engineering solutions for complete sesame processing systems
- Hygienic food-grade stainless-steel construction ensuring safety and durability
- Fully automated turnkey production lines for seamless industrial operation
- Global services including installation, commissioning, operator training, and technical support
- Strong international presence across 25+ countries worldwide
Through continuous innovation and process optimization, MarkoomTech delivers scalable, efficient, and high-quality sesame processing solutions for producers around the world.
