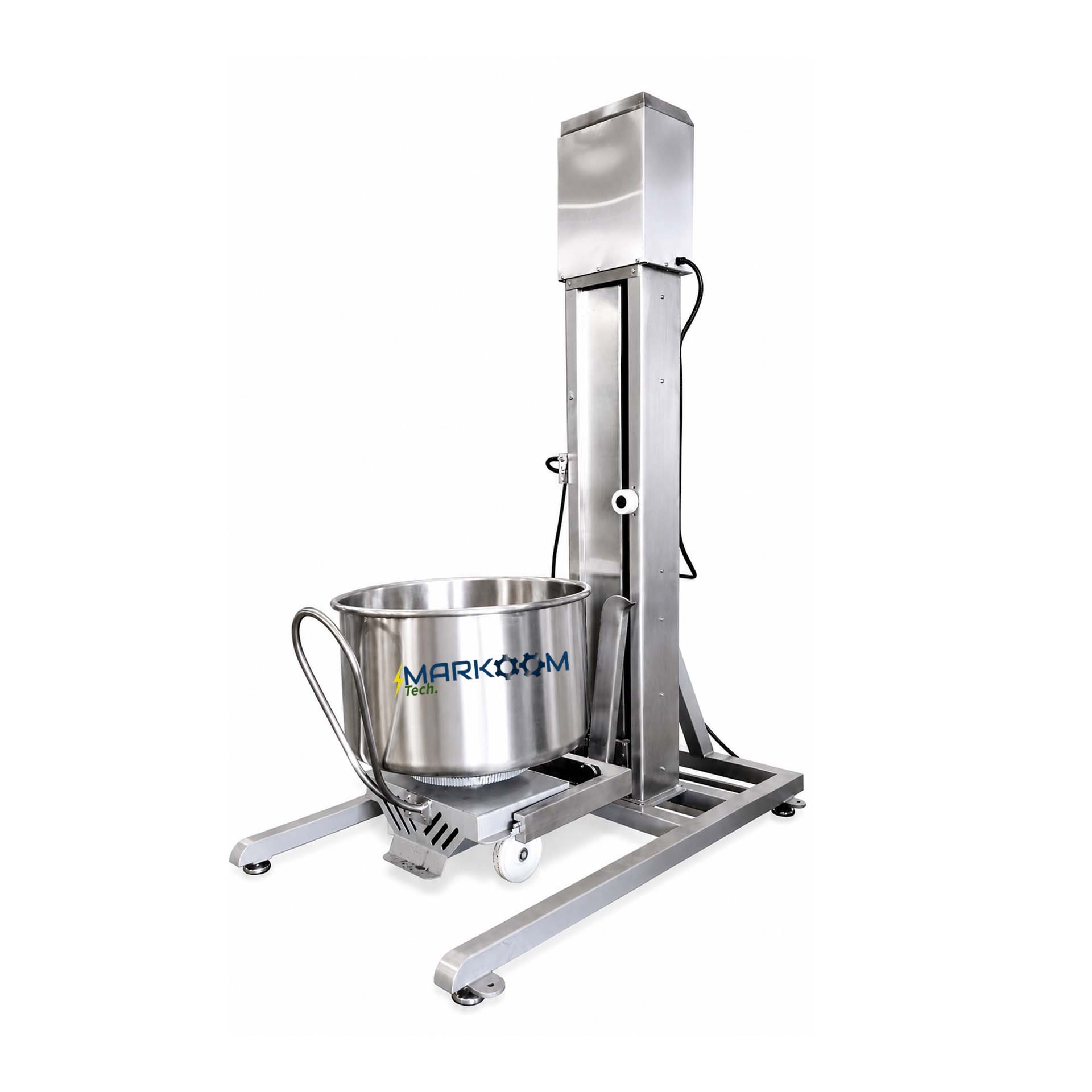

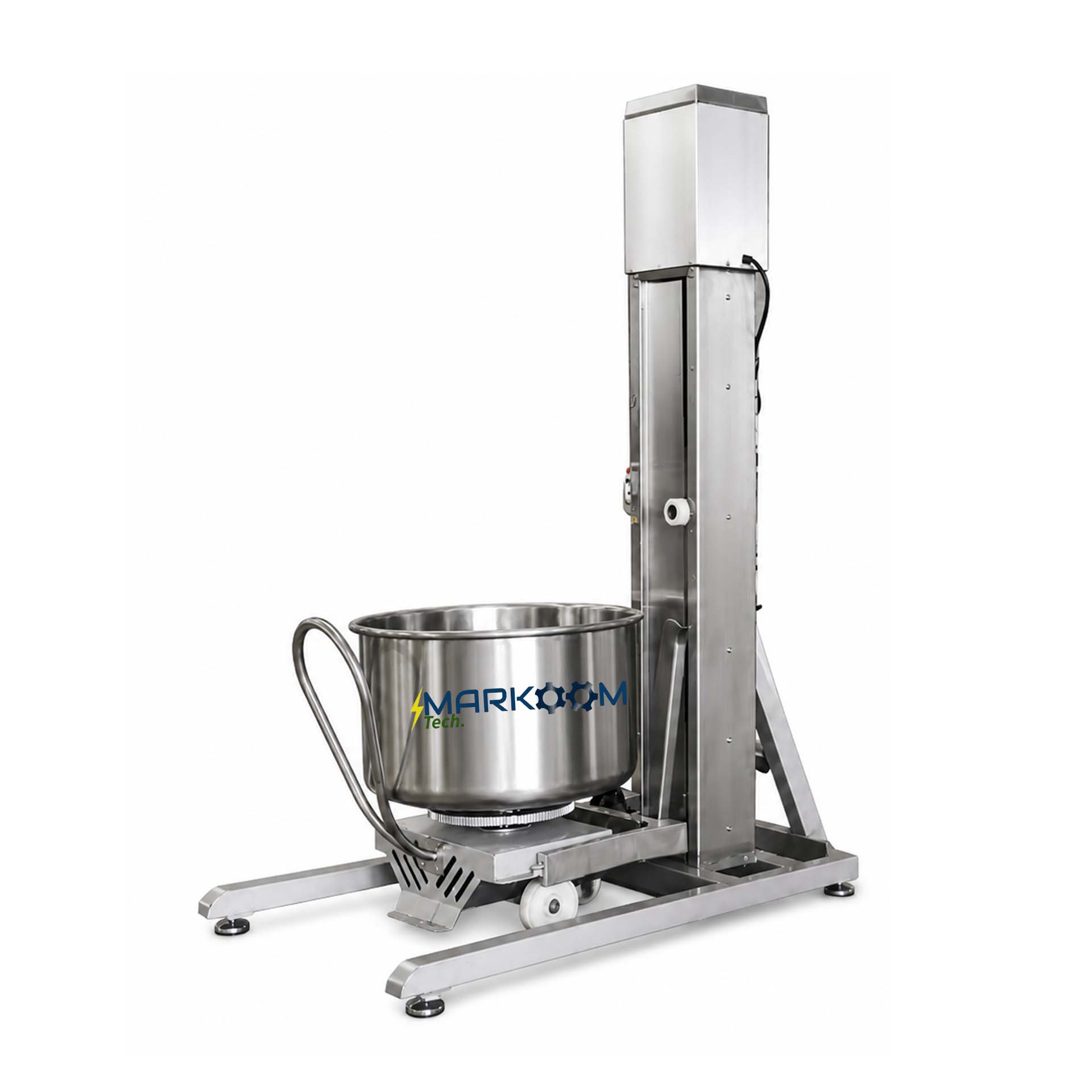

Bowl Elevator-Tipper – MTBET – 250
MarkoomTech Bowl Elevator-Tipper MTBET-250 is engineered to automate the transfer of dough from a removable MarkoomTech Halawa Kneader Machine – MTHKM – 250 bowl directly into a worktable or volumetric divider hopper in halawa bar production lines.
Product Overview – Bowl Elevator-Tipper MTBET-250
The system operates through a motorized lifting and controlled tipping mechanism, designed for safe and efficient handling of heavy halawa dough bowls in industrial production environments.
Once the bowl is lifted, it can be precisely tilted upward or downward to ensure complete and controlled discharge of contents. The system is equipped with a front discharge function, making it suitable for various factory layouts and flexible production configurations.
This design ensures seamless integration into automated halawa processing lines, improving material flow between stages and reducing manual handling requirements while maintaining hygienic and continuous production standards.
Main Components – Bowl Elevator-Tipper MTBET-250:
- Main Frame Structure: Heavy-duty AISI 304 stainless steel construction for industrial durability
- Lifting System: Motorized vertical elevation mechanism for safe bowl handling
- Tilting Unit: Controlled hydraulic/mechanical tipping system for precise discharge
- Bowl Support Arms: Reinforced locking arms for stable bowl positioning during lifting and tilting
- Drive System: Industrial motor and gearbox assembly for smooth operation
- Discharge System: Front discharge design for flexible factory layouts
- Control Panel: External operator control unit with start/stop and safety functions
- Safety System: Integrated limit switches and emergency stop (E-Stop)
- Electrical System: Protected industrial wiring and control components for stable performance
Operational Manner – Bowl Elevator-Tipper MTBET-250:
After the halawa kneading process is completed, and the dough reaches the required consistency, the batch is transferred for further processing. The finished halawa mass can be directed either to flavoring and nut addition units, the halawa filling machine, or the halawa bar production line, depending on the production configuration.
The filled kneader bowl is then positioned on the Bowl Elevator-Tipper MTBET-250 for automated handling. Once securely attached to the lifting system, the industrial drive unit raises the bowl vertically to the required discharge height.
At the designated position, the system performs a controlled tilting operation, ensuring complete and hygienic discharge of the material into the next processing stage. After emptying, the system automatically returns the bowl to the ground position, ready for the next production batch.
This process ensures a continuous, safe, and fully automated material transfer flow between production stages.
Key Features – Bowl Elevator-Tipper MTBET-250:
- Fully motorized lifting system for safe industrial operation
- Controlled hydraulic/mechanical tipping mechanism for precise discharge
- Flexible front discharge design for multiple layout options
- Fully compatible with MTHKM-250 kneader bowls
- Compact industrial footprint for space optimization
- Hygienic food-grade stainless steel construction (AISI 304)
- Easy integration into continuous production lines
- Designed for high-frequency industrial operating cycles
Advantages – Bowl Elevator-Tipper MTBET-250:
- Ensures continuous production flow between kneading and forming stages
- Reduces manual labor and operator dependency
- Maintains high hygiene standards with minimal human contact
- Offers flexible factory layout adaptation
- Enables faster and safer material transfer
- Provides reliable long-term industrial performance
Applications – Bowl Elevator-Tipper MTBET-250:
The Bowl Elevator-Tipper MTBET-250 is widely used in modern industrial food processing facilities where safe, hygienic, and automated material handling is required between production stages.
- Halawa bar production lines, where it ensures continuous transfer of halawa mass from kneading to forming and shaping systems
- Tahini-based confectionery processing plants, supporting efficient movement of dense food products between cooking, mixing, and finishing units
- Industrial dough transfer systems, designed for controlled handling of heavy and sticky dough materials without manual intervention
- Automated food manufacturing lines, where it integrates seamlessly into fully continuous production workflows
- High-capacity confectionery factories, requiring fast, safe, and hygienic handling of large batch volumes
It is especially suitable for fully automated halawa production facilities, where consistent material flow, reduced labor dependency, and high hygiene standards are critical for efficient industrial performance.
Related Halwa Cooking Machines:
• Halawa Machine – MTHM – 250
• Halva Machine – Dual Boiling – MTHMDB – 500
• Halawa Kneader Machine – MTHKM – 250
• Bowl Elevator-Tipper – MTBET – 250
We will develop a dedicated bowl lifting solution precisely matched to your vessel geometry and production requirements.
